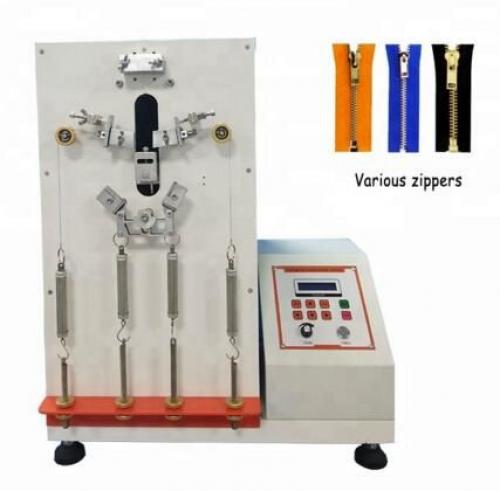

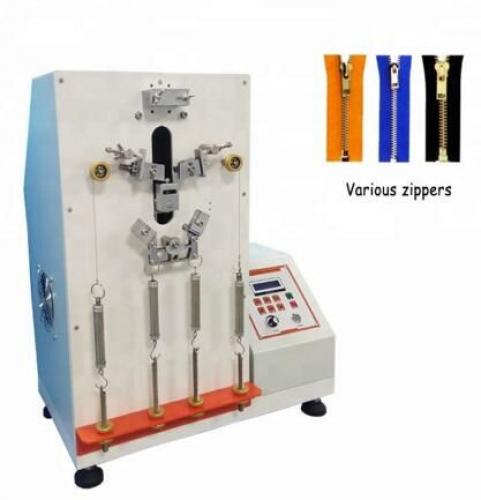

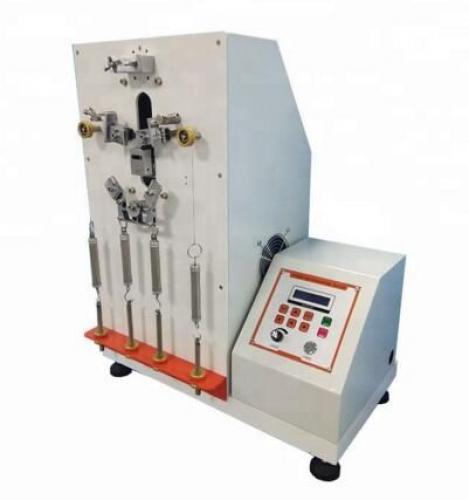

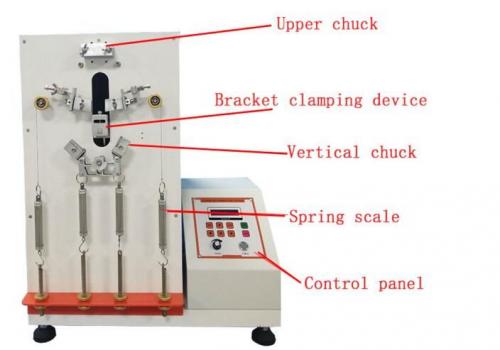

Automatic Pull Rod Luggage And Bags Zipper Plastic Reciprocating Tester
item No: SL-TL08
Technical parameters of Zipper Plastic Reciprocating Tester
|
Stroke |
75mm |
|
Motor |
1/4HP |
|
Counter |
LCD, 0-999,999 |
|
Machine Size |
280x550x660mm (LxWxH) |
|
Weight |
40 KG |
|
Power Supply |
220 /110 V 50/60 Hz 4 A |
|
Transverse clamping device width |
25mm |
|
Total weight of clamping device |
0.28-0.34kg |
|
Distance between two device |
6.35mm |
|
Opening Angle of sample |
60° |
|
Interdigitation angle of sample |
30° |
Application of Footwear Testing Machine
Electronic Durable Zipper Fatigue Testing Equipment, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension.Electronic Durable Zipper Fatigue Testing Equipment catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute, Integral counter to stop the drive when a pre-selected count has been reached.
