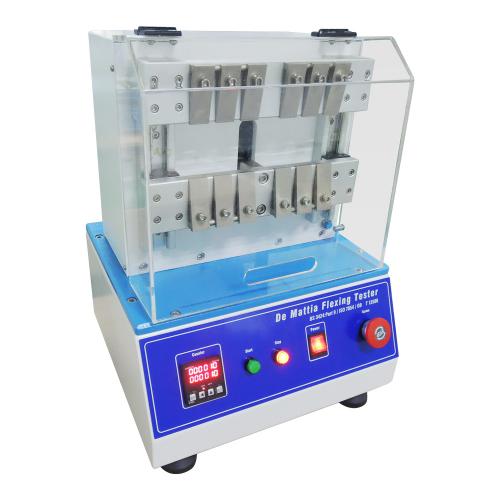

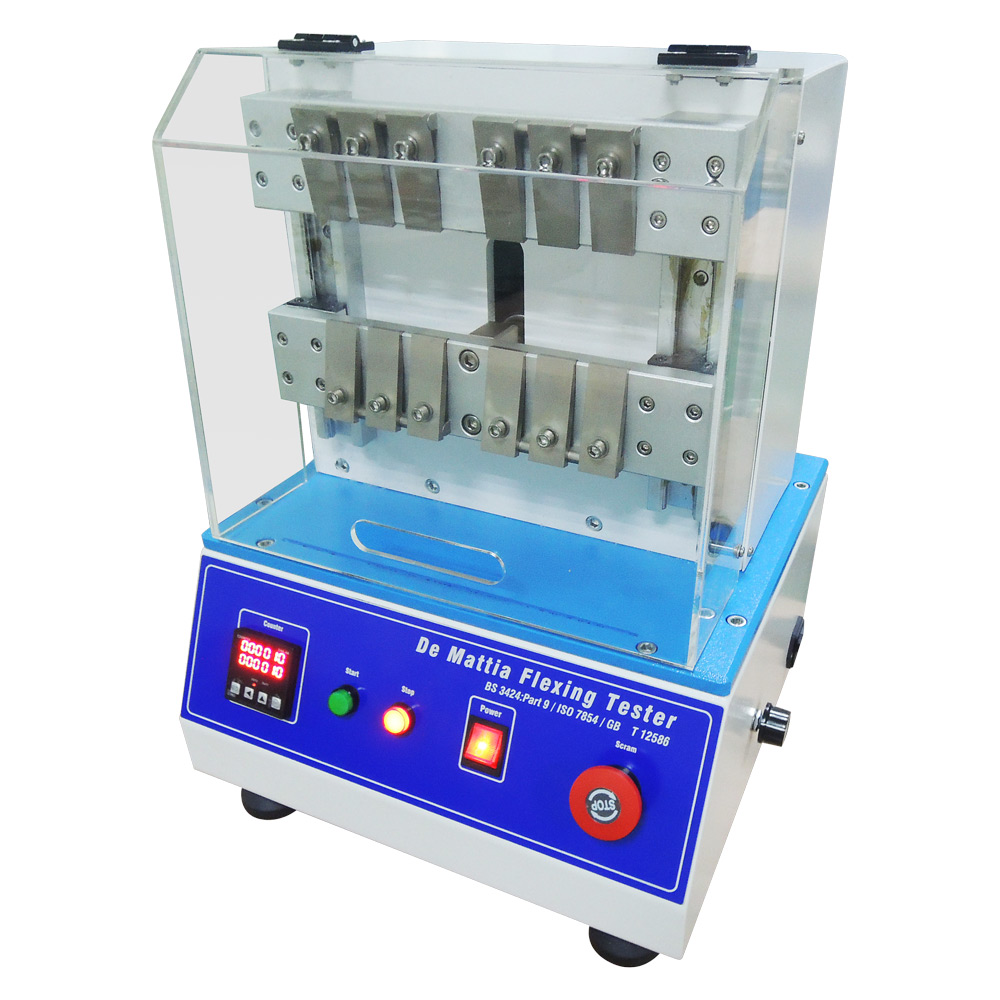

SL-L63 De Mattia Zigzag Testing Machine

item No: SL-L63

Standards of De mattia Zigzag Testing Machine:

ASTM D430, ASTM D813, GB/T 13935

Technical Parameters of De mattia Zigzag Testing Machine:

Temperature range:	room temperature + 10℃ ~ 150℃
Speed:	5 Hz
Clamp:	10 groups, each group can clamp 2 pieces (20 pieces in total)
Time setting:	0 ~ 999 hours
Test piece size:	vulcanized rubber 150 (L) * 25 (W) * 6.35 (T) mm
Temperature control:	adopt PID intelligent parameter automatic control and electronic LED display
Circulation system:	fan forced circulation system
Inner box material:	SUS304 # stainless steel
Size:	125 (W) * 102 (d) * 180 (H) cm
Power supply:	AC220V / 380V 3PH 20A 3kw

Inquiry Now

Detailed Description

Inquiry Now

Features of De mattia Zigzag Testing Machine:

The high-temperature demattia fatigue tester conforms to ASTM d430, ASTM d813 and GB / T 13935.

It has transparent windows, and can directly observe the experimental conditions by using multi-layer vacuum defogging transparent landscape windows.

Clip in the specimens of the machine, after continuous bending fatigue of cracking degree observation in solution or compare their durability. Suitable for materials such as rubber, leather, synthetic leather, and shoe sole.
