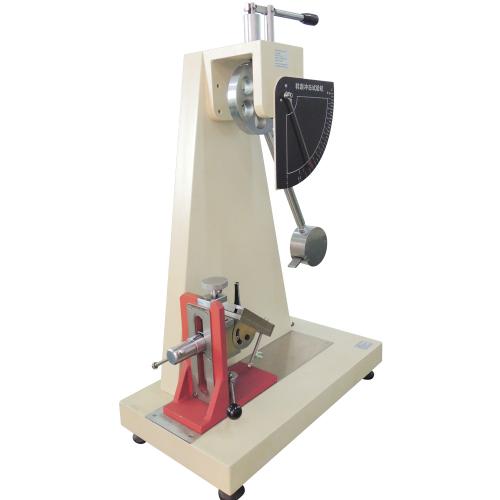

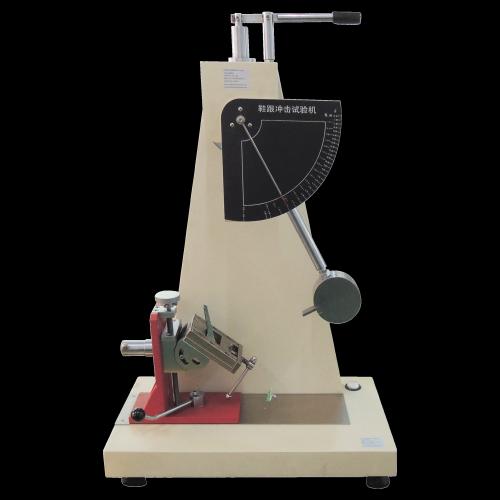

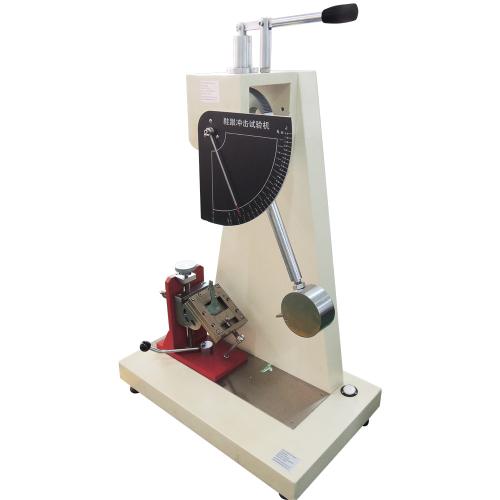

SL-L16 Heel Impact Test Machine
Standards of Heel Impact Test Machine:
BS-5131, QB/T2863, IS019953, SATRA TM20
Parameters of Heel Impact Test Machine:
|
Model |
SL-L16 |
|
Minimum Reading |
0.68J;0.5J |
|
Capacity(Optional) |
0~183J;0~19J |
|
Striker Head |
Diameter:108±1mm;Thickness:49±2mm |
|
Hammer Energy |
17.3N-m(12.7ft-lb) |
|
Angle |
0~45° |
|
Dimension(W*D*H） |
69*40*98cm |
|
Weight |
86kg |
Use of Heel Impact Test Machine：
This machine is designed for determining the impact strength of the heels of all kinds of women's shoes with heights greater than 38mm. The maximum impact strength of the heel is measured by using a pendulum striker to hit the secured heel. This machine features a durable striking assembly, an easily adjustable heel holding device, and easy-to-read test results.
