Heel of High Heel

The heel of high heel can be easy to break in some circumstances, and this is about the material and design of high heel.

And the quality should be tested in standard SATRA TM21, BS-5131.

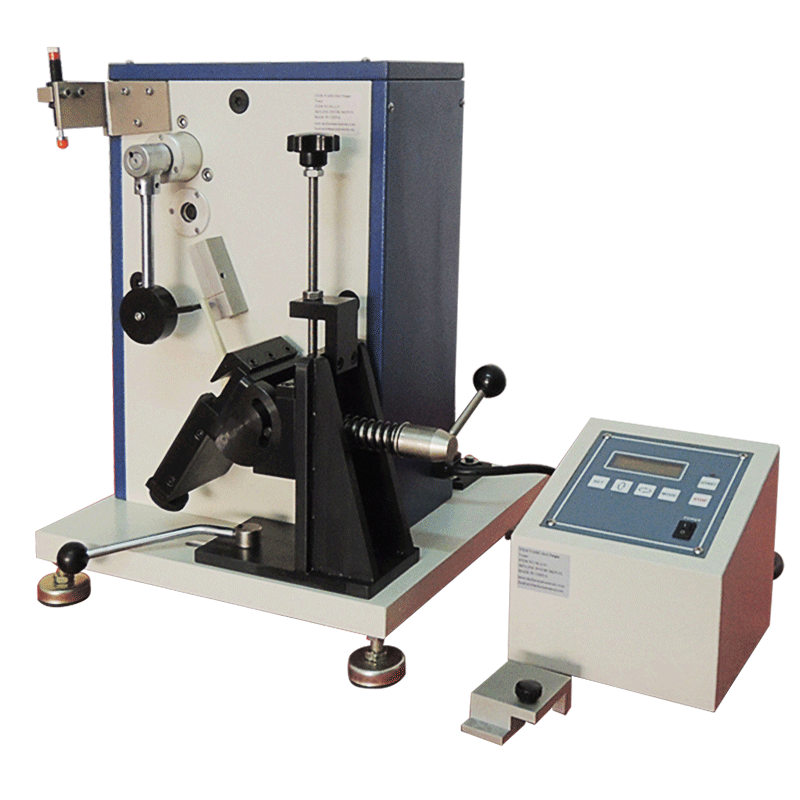

Here is SKYLINE Footwear series ——SL-L15 Heel Fatigue Tester.

Model	SL-L15
Energy Impact	0.68J
Impact Frequency	60/min
Impact Angle	90°
Counter	LCD 0~999,999
Hammer	Diameter:57±1mm  Thickness:20±1mm
Dimension(W*D*H)	main un:40*40*48cm   control box:18*21*20cm
Weight	70kg
Power	1∮AC220V,3A

Use:

This machine is specially used to test the continuous impact resistance of the heels of women's high-heeled shoes and medium-heeled shoes

Under certain energy and frequency, the punching edge of the machine continuously strikes the heel until the heel is fatigued and broken

So as to know the continuous impact bearing index of the heel and determine the durability of the heel
